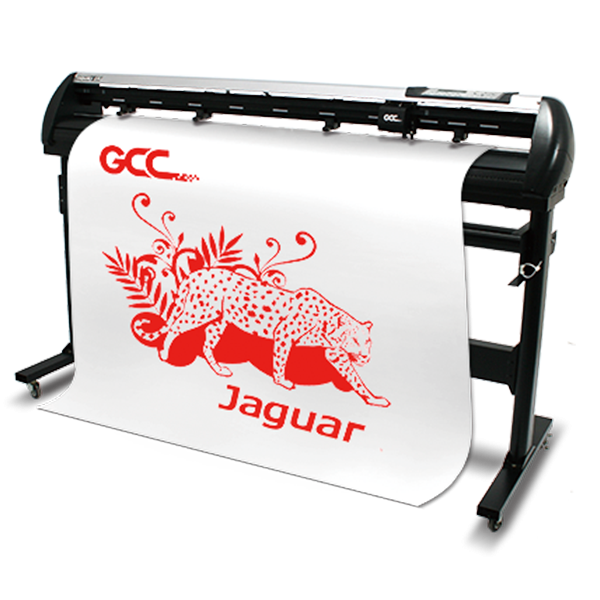

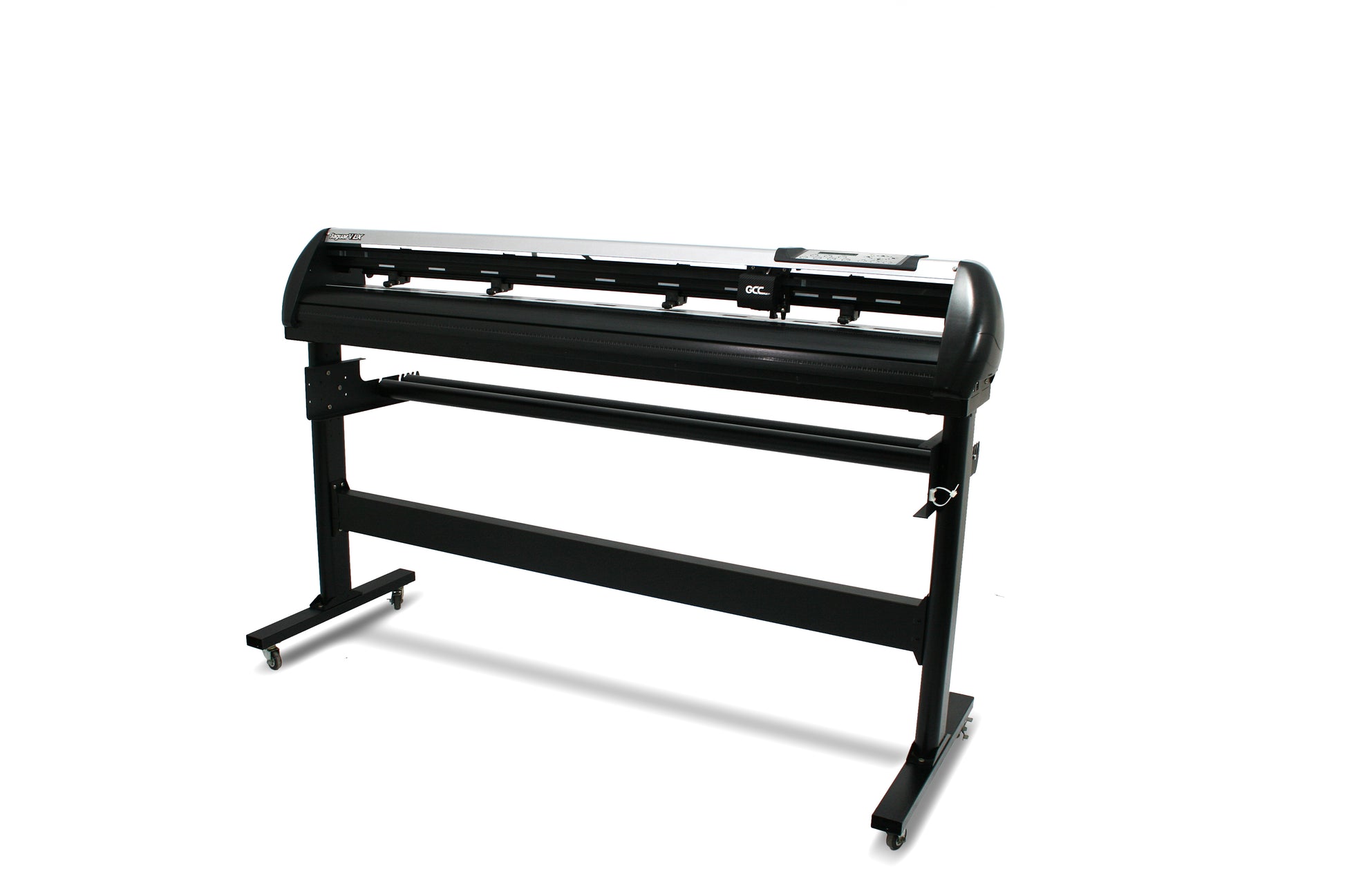

Jaguar V Lx J5-101Lx 40" Vinyl Cutter By Gcc

Features

• Enhanced AAS II Contour Cutting: The LX models feature an enhanced Automatic-Aligning System (AAS II) that guarantees precise contour cutting by automatically detecting registration marks on digitally produced images.

• Section Cutting: This feature automatically divides long plot data into sectional output jobs, which increases precision and yields higher cutting quality on massive jobs.

• Advanced Positioning & Rotation: LX models include Segmental Positioning to correct crooked prints, as well as an Auto Rotation feature that detects registration marks and rotates cutting content automatically.

• Ethernet Connection: A built-in network connection enables multiple Jaguar V machines to be operated by one PC, or allows multiple PCs to share a single cutter.

• Versatile Material Handling: Beyond standard tint, it perfectly cuts a wide range of tough materials, including reflective film and sandblast film.

Technical Information

• Operational Method: Roller-Type.

• Max. Cutting Force: 600 g.

• Max. Cutting Speed: 1530mm/sec (60 ips).

• Motor Drive: DC Servo Control.

• Interfaces: USB 2.0 (Full Speed), Serial (RS-232C), and Ethernet.

• Control Panel: LCD (20 digits x 2 lines), 14 Keys, and 1 Power LED.

• Memory Buffer: 32 MB / 16 MB (when using AAS).
