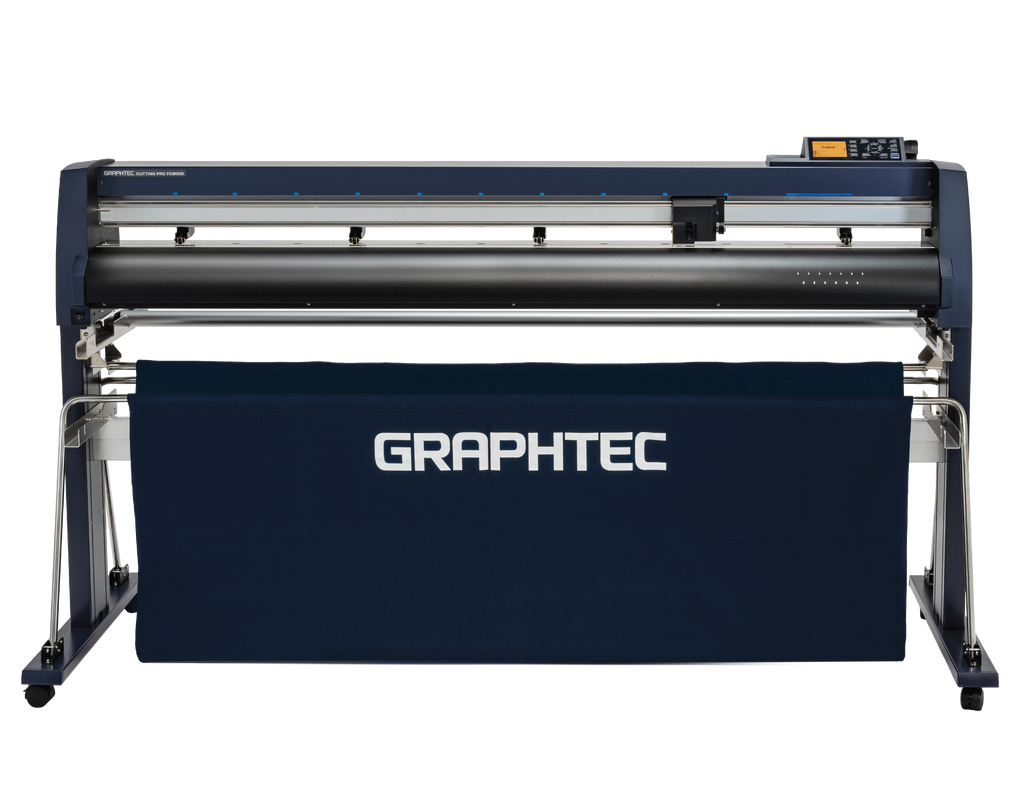

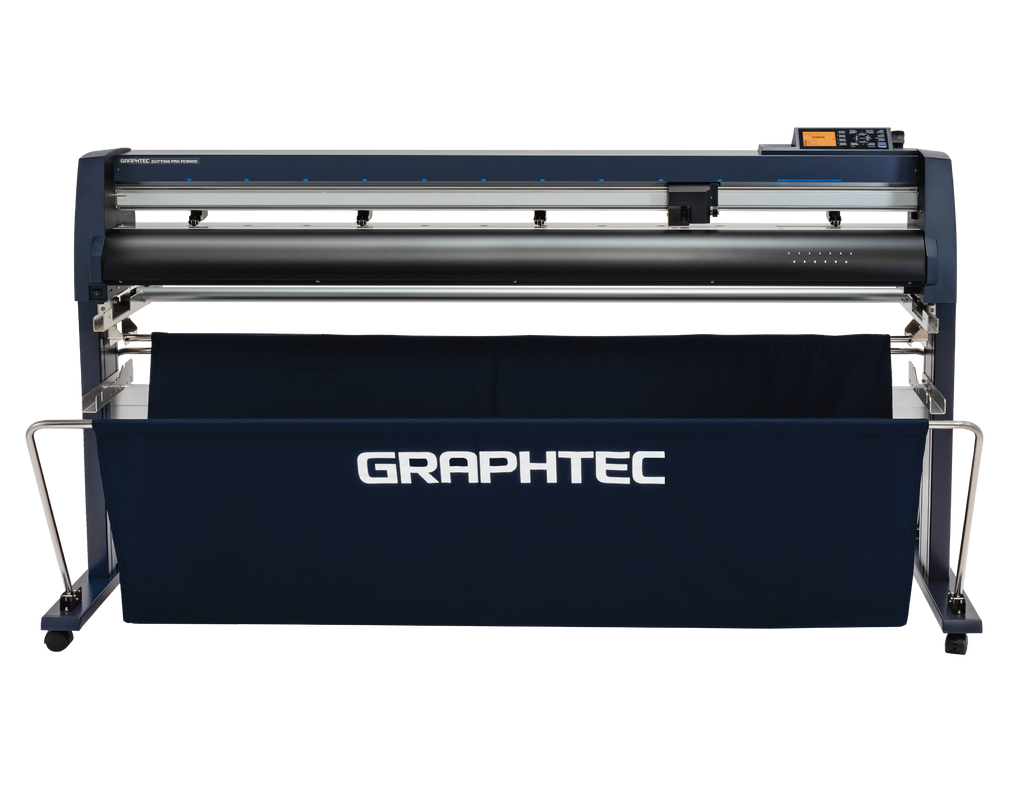

Graphtec FC9000-100 42" Cutting Plotter
Graphtec FC9000-100 42" Cutting Plotter
Most orders placed before 2:00pm EST are shipped within 1 business day except on the weekends.

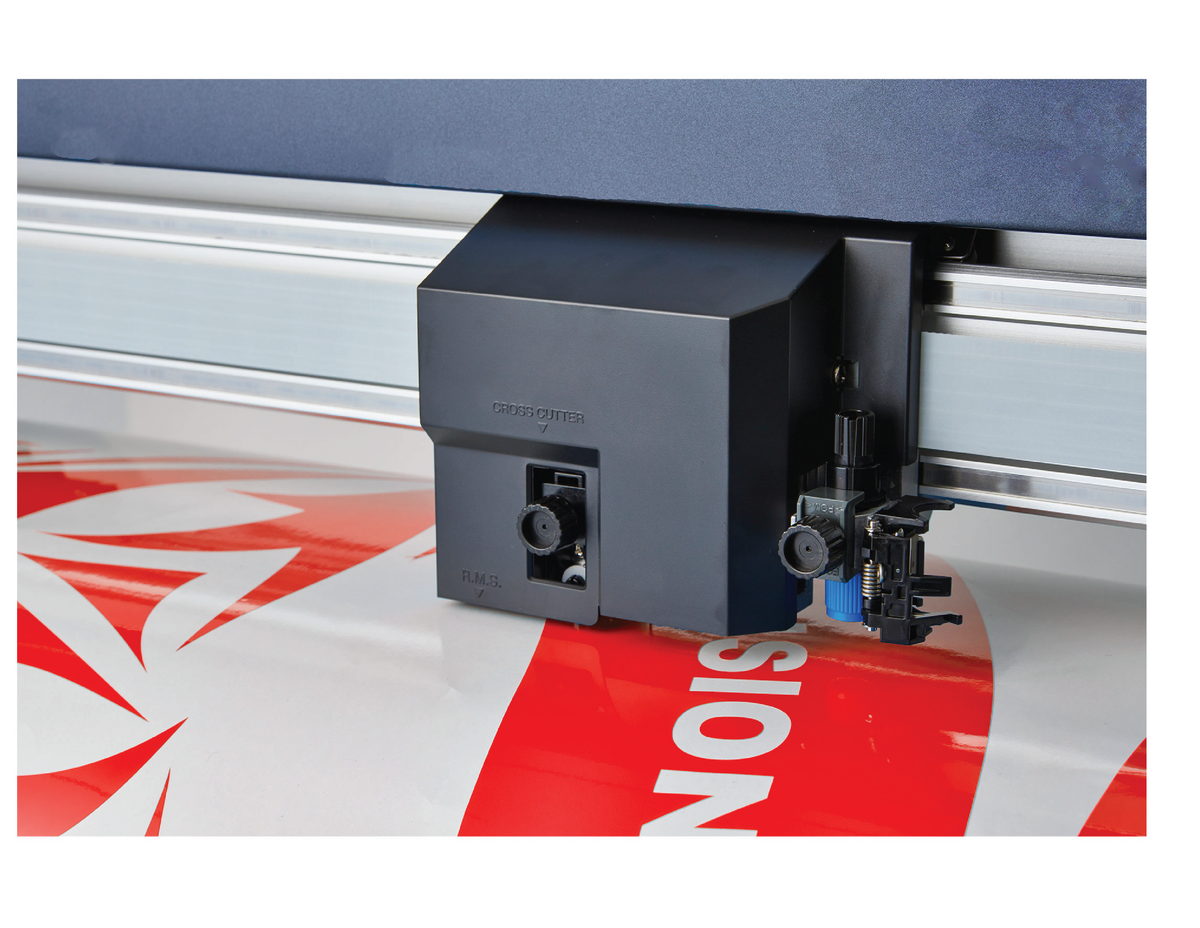

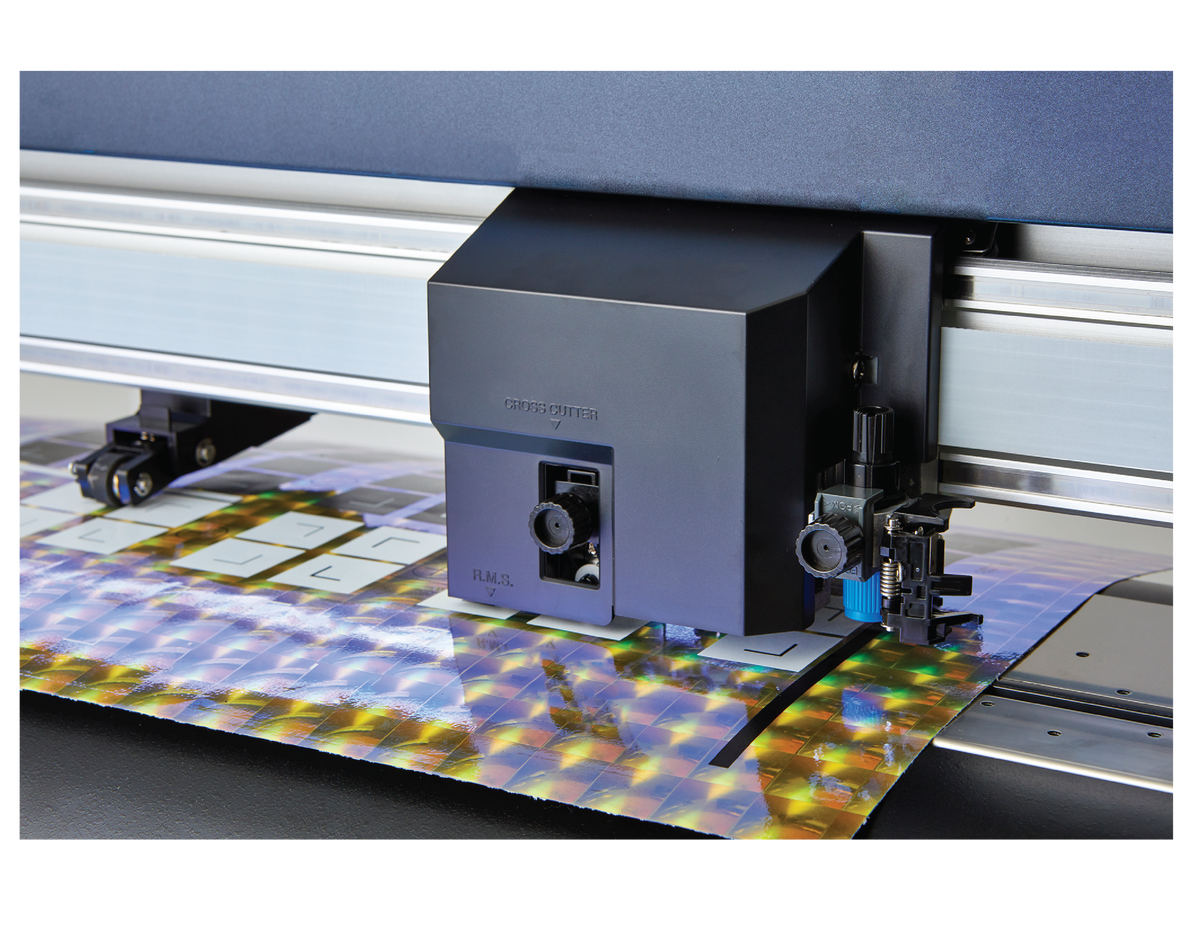

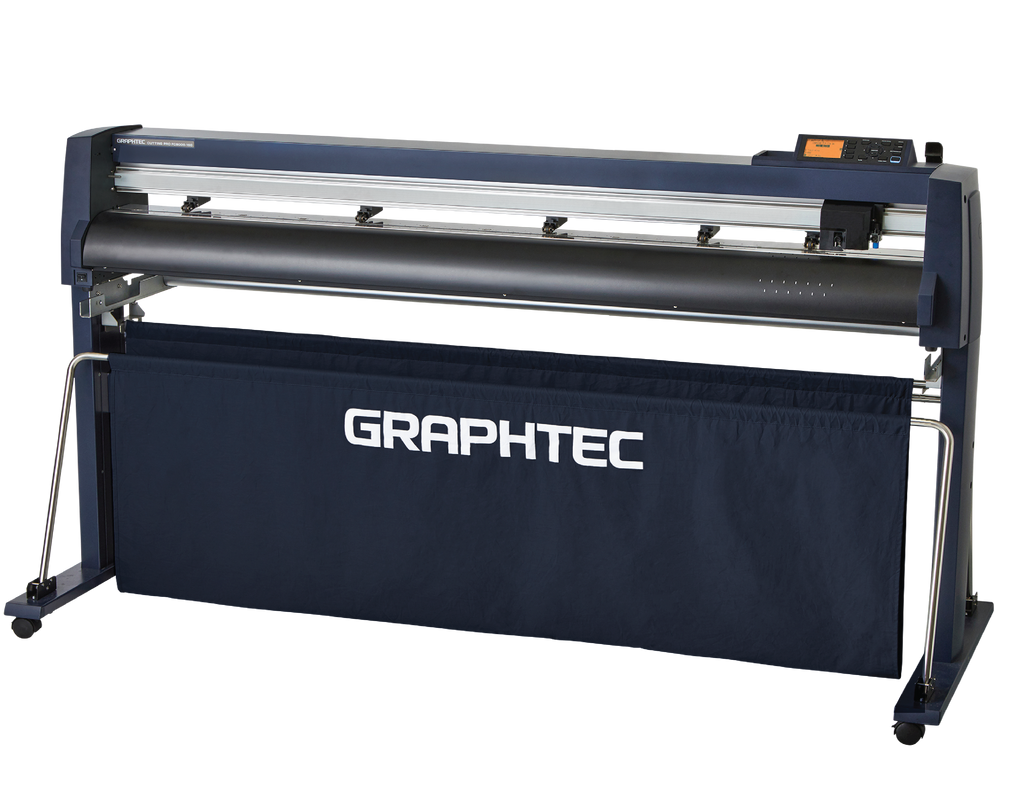

The production plotter for shops that need more cut force than a standard plotter gives them. The Graphtec FC9000-100 handles media up to 42" wide with 600 gf of cutting force and 58.5"/s cutting speed. Graphtec rates it for window tint film, automotive paint protection film and self-adhesive vinyl, with a 59.1 mil maximum media thickness — thicker and heavier material than the CE8000 series is built for. Three push rollers and grit-rolling servo drive keep long pulls tracking straight.

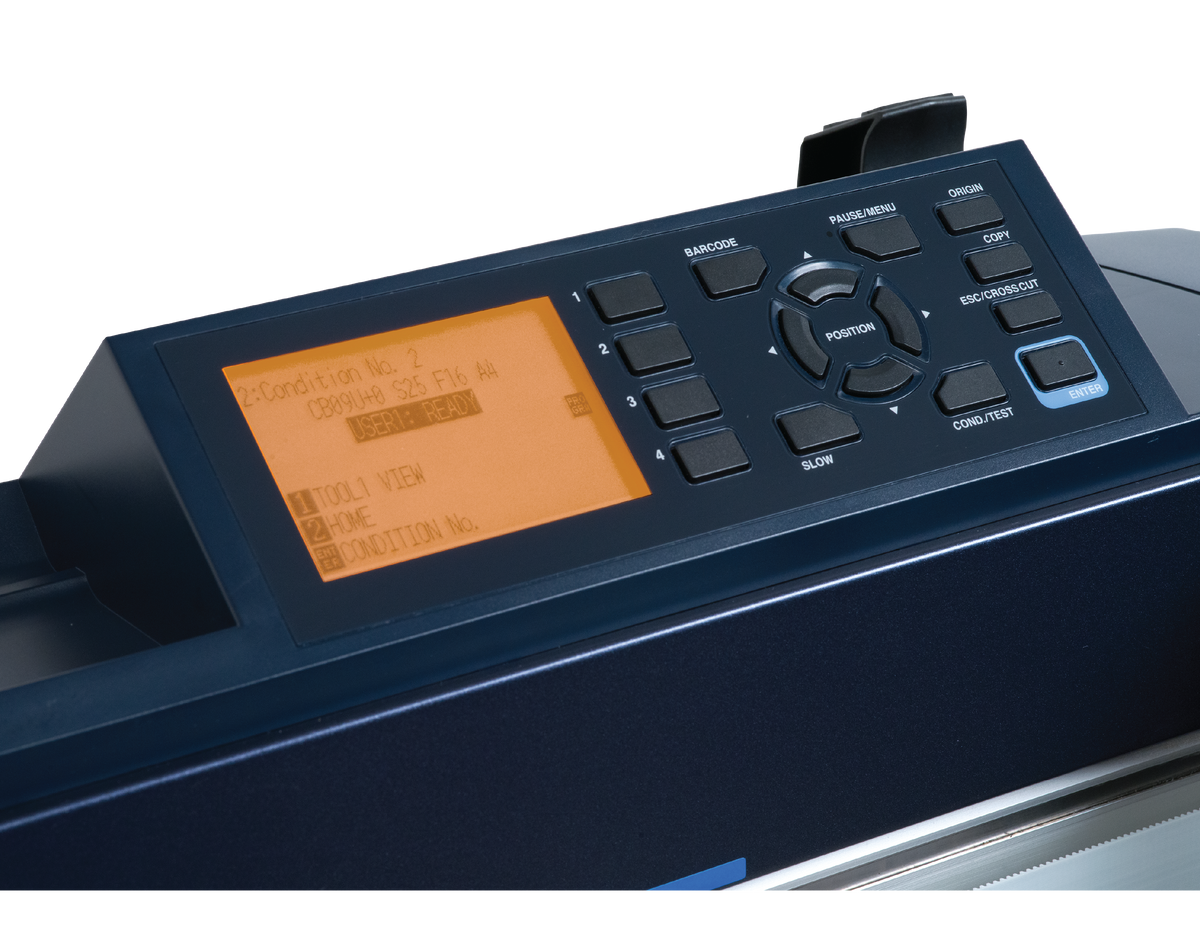

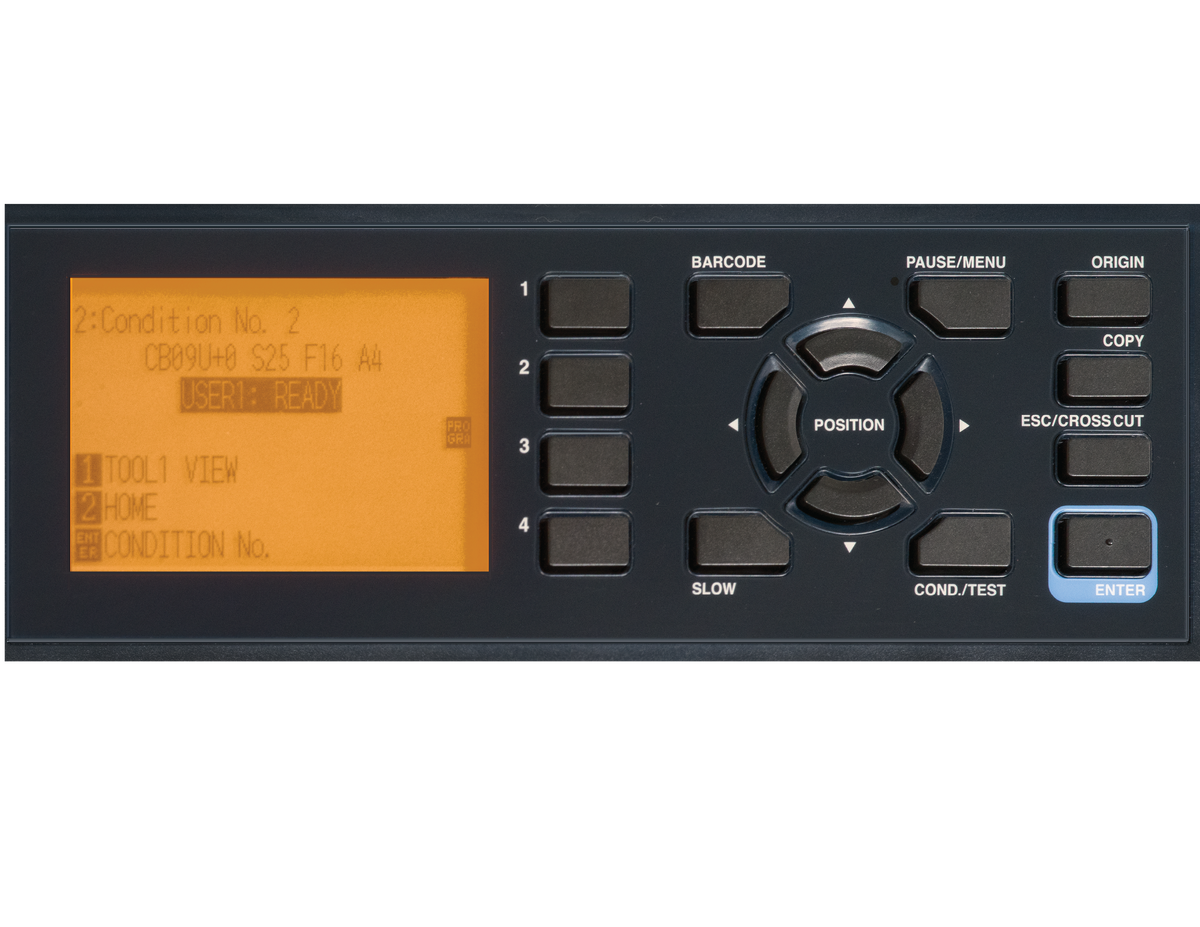

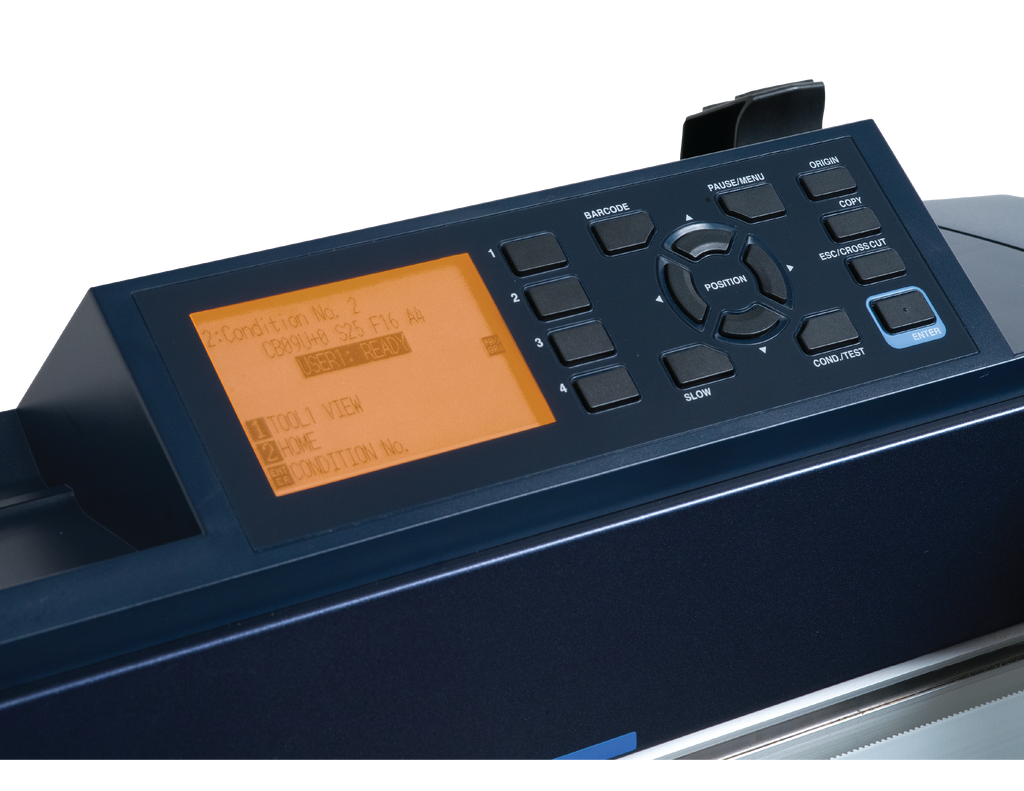

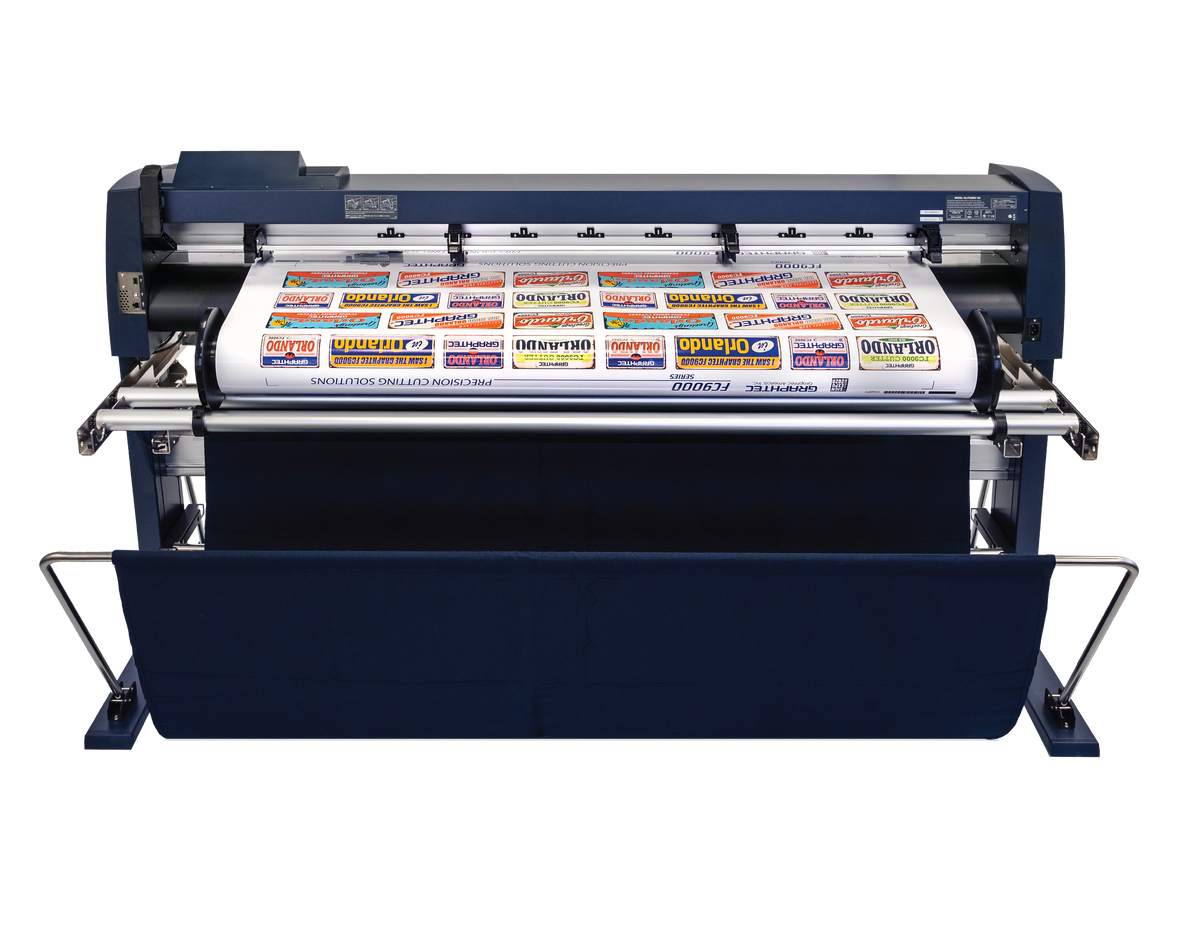

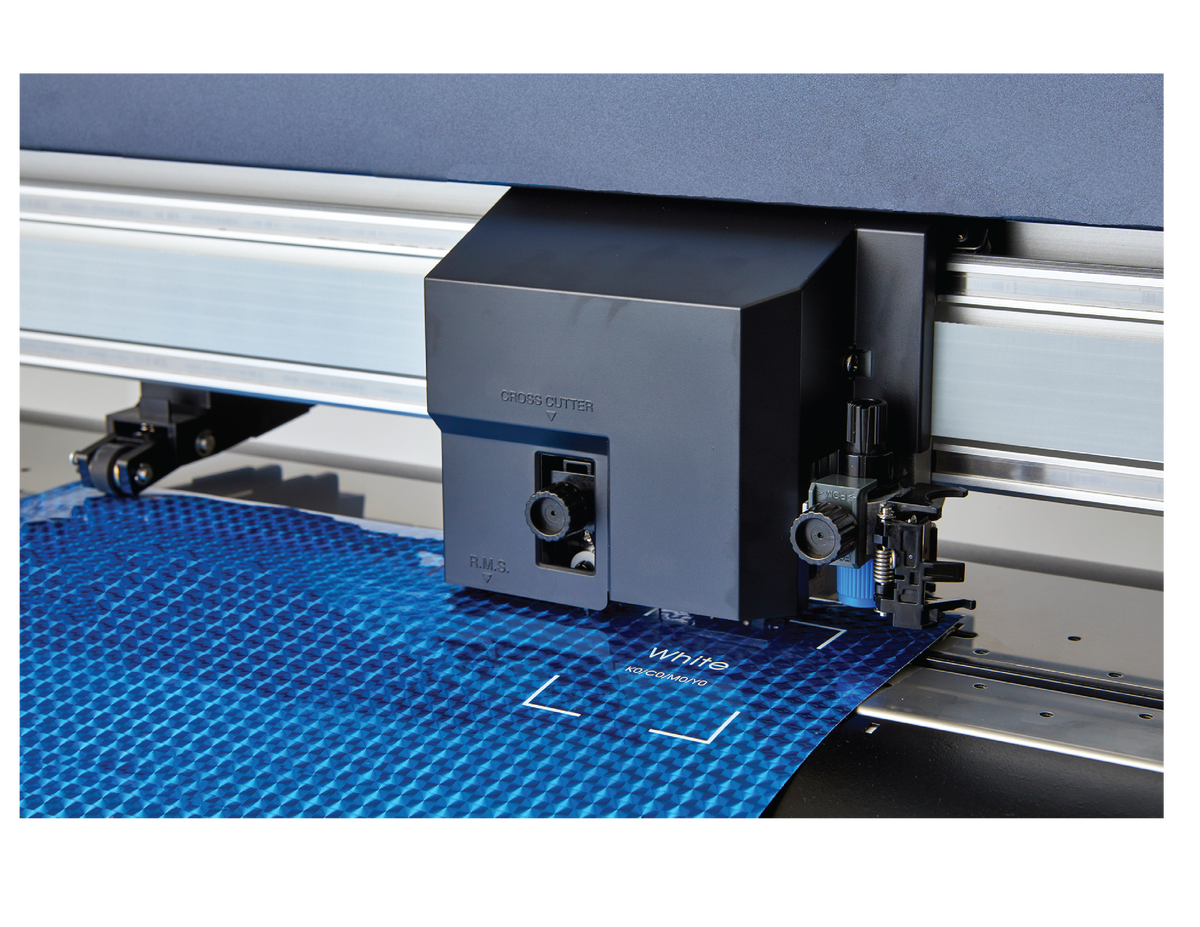

Cut without a computer: load a job to a USB stick and run it from the 3.7" LCD panel. The Data Link barcode system reads a start mark and pulls the matching cut file automatically, so a roll with multiple jobs cuts straight through without stopping. Auto Paneling splits long jobs into sequential pages to prevent skew.
What's in the box

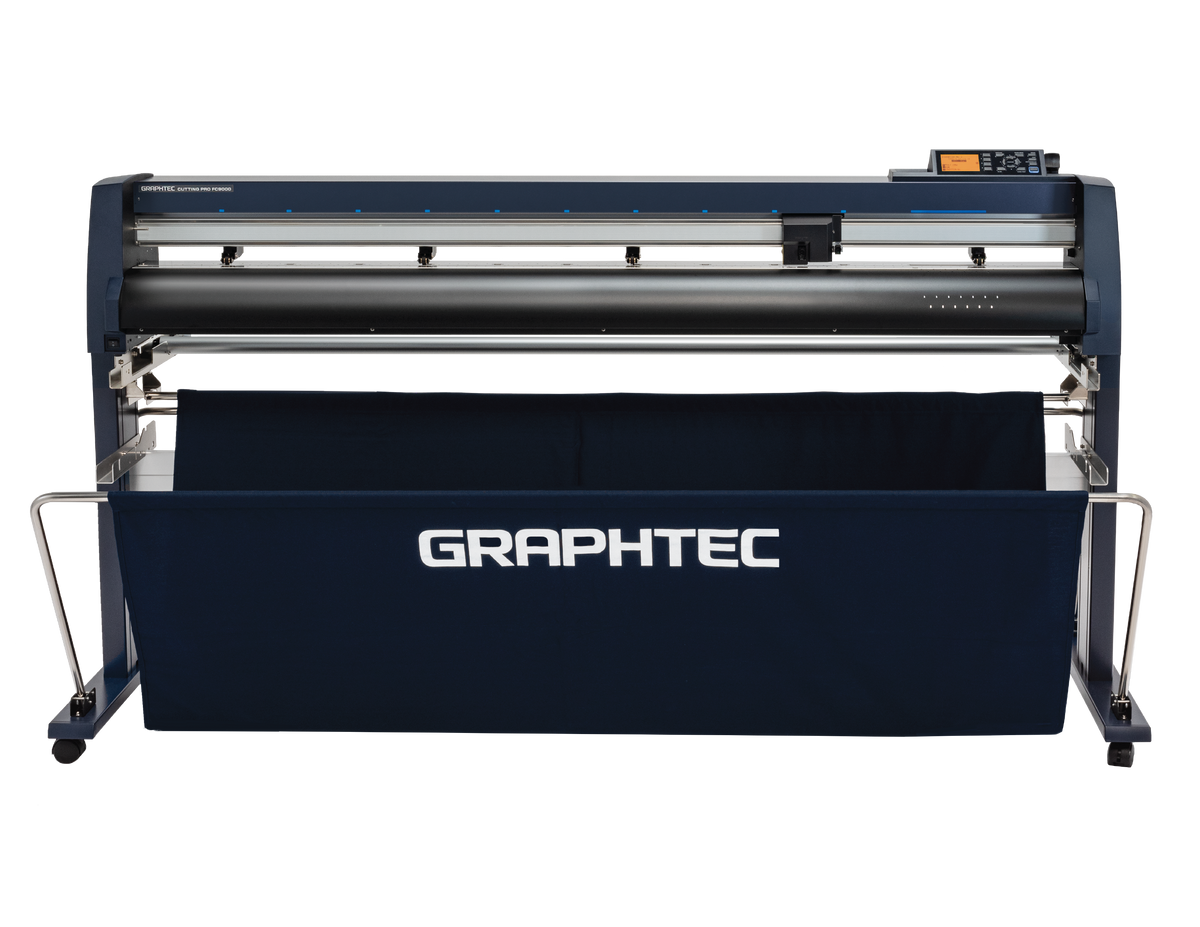

- Graphtec FC9000-100 cutting plotter, 42" max cutting width

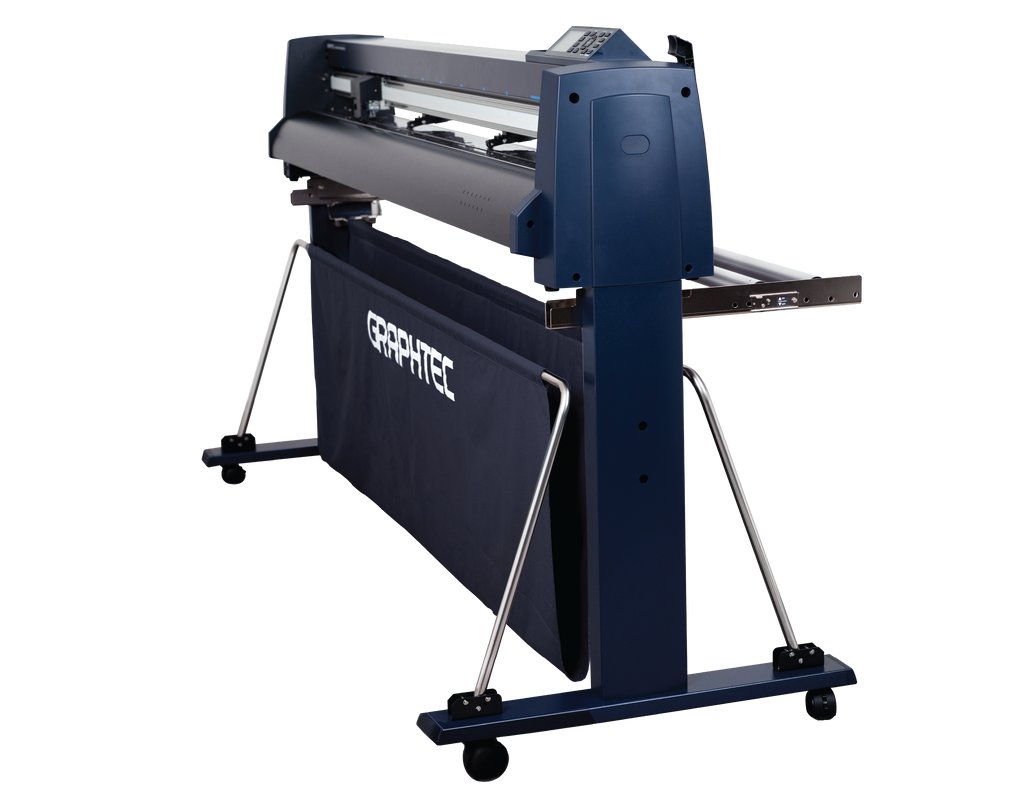

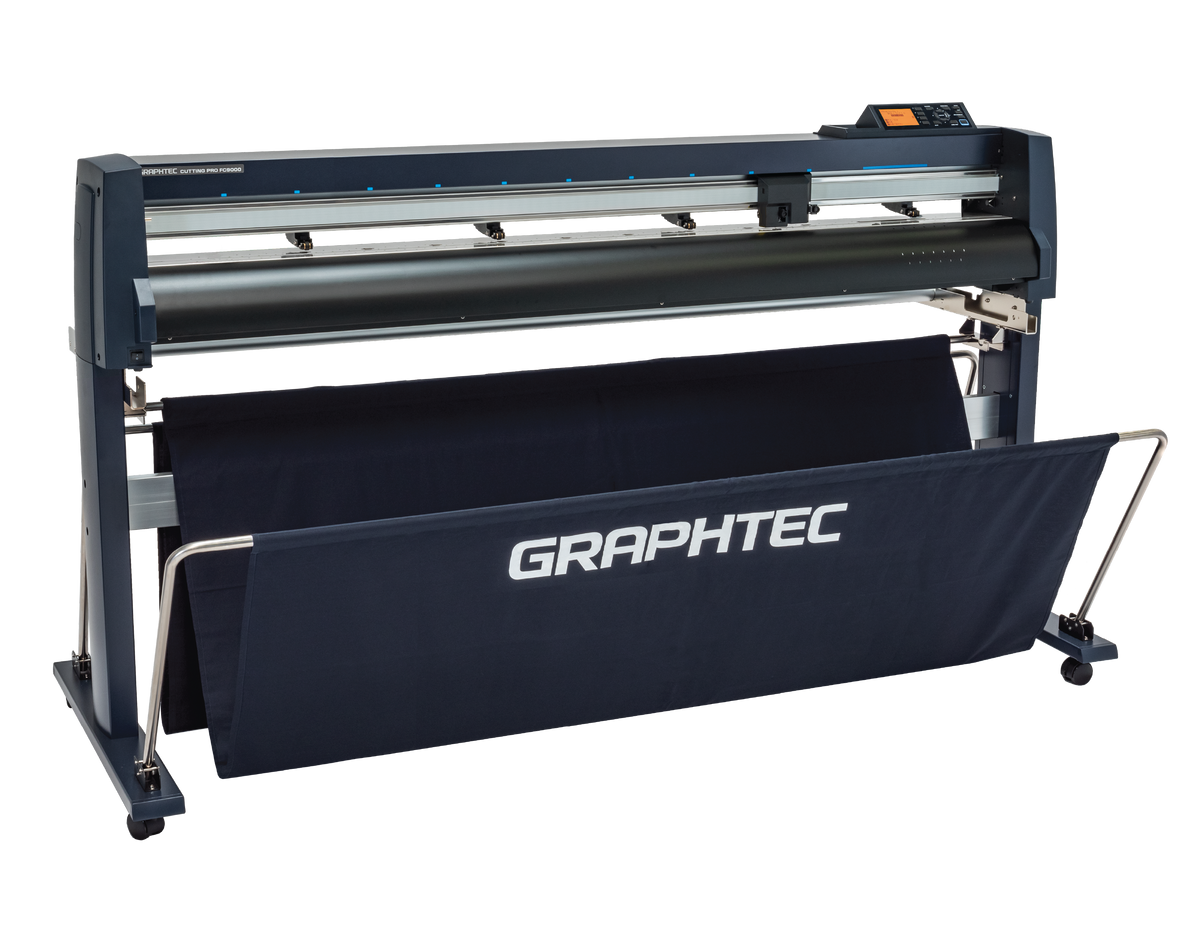

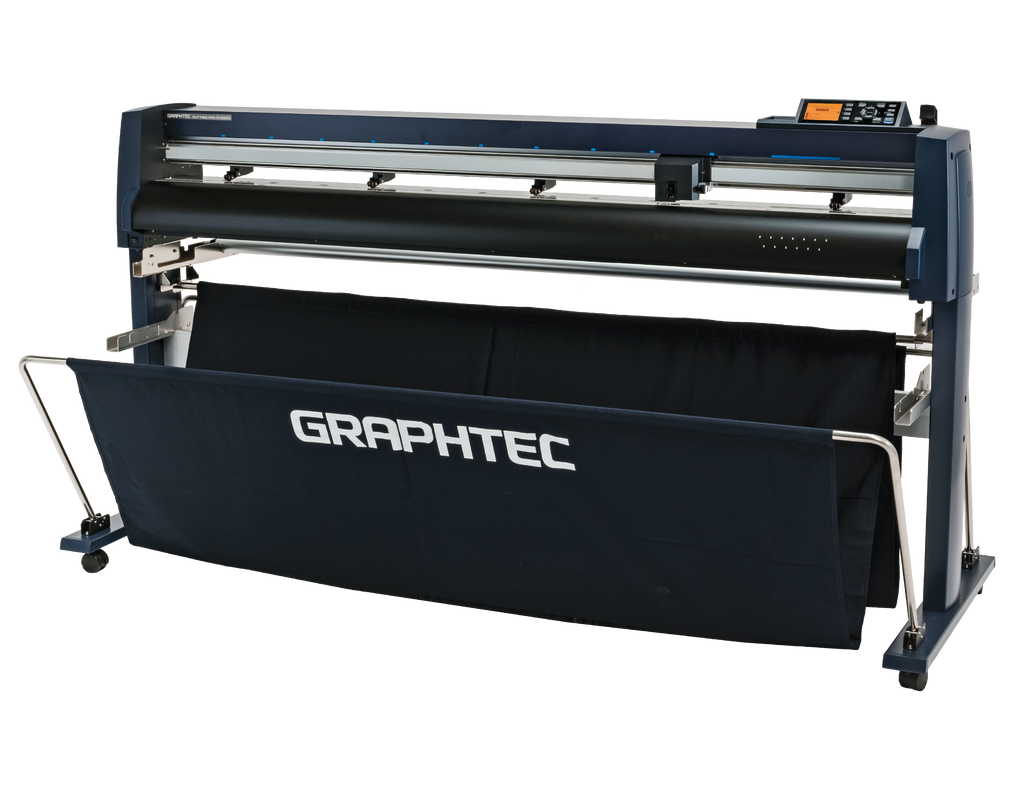

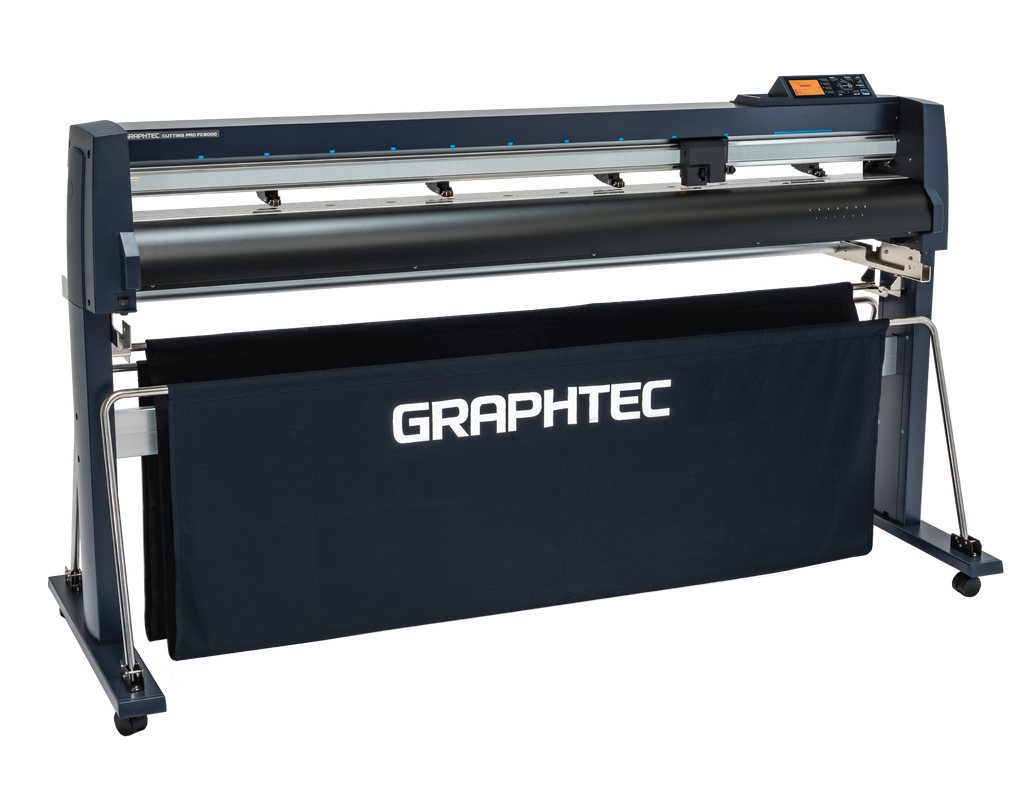

- Floor stand with media basket
- CB09UB blade and PHP33-CB09N-HS blade holder
- Media flanges for accurate roll tracking
- Lumocolor 311-BK fiber pen with PHP31-FIBER pen adapter
- PM-CT-001 blade loupe for setting blade depth
- Cutting Master 5 plug-in (Adobe Illustrator PC/Mac, CorelDRAW PC), Graphtec Studio 2 (PC/Mac), Windows driver
Specifications
- Maximum cutting width: 42"
- Mountable media width: 2" to 48"
- Guaranteed tracking: 42" × 50'
- Cutting force: 600 gf in 48 steps
- Cutting speed: up to 58.5"/s at 45°
- Maximum media thickness: 59.1 mil (1.48 mm)
- Push rollers: 3
- Mechanical resolution: 0.005 mm
- Offline operation: USB memory, up to 64 files

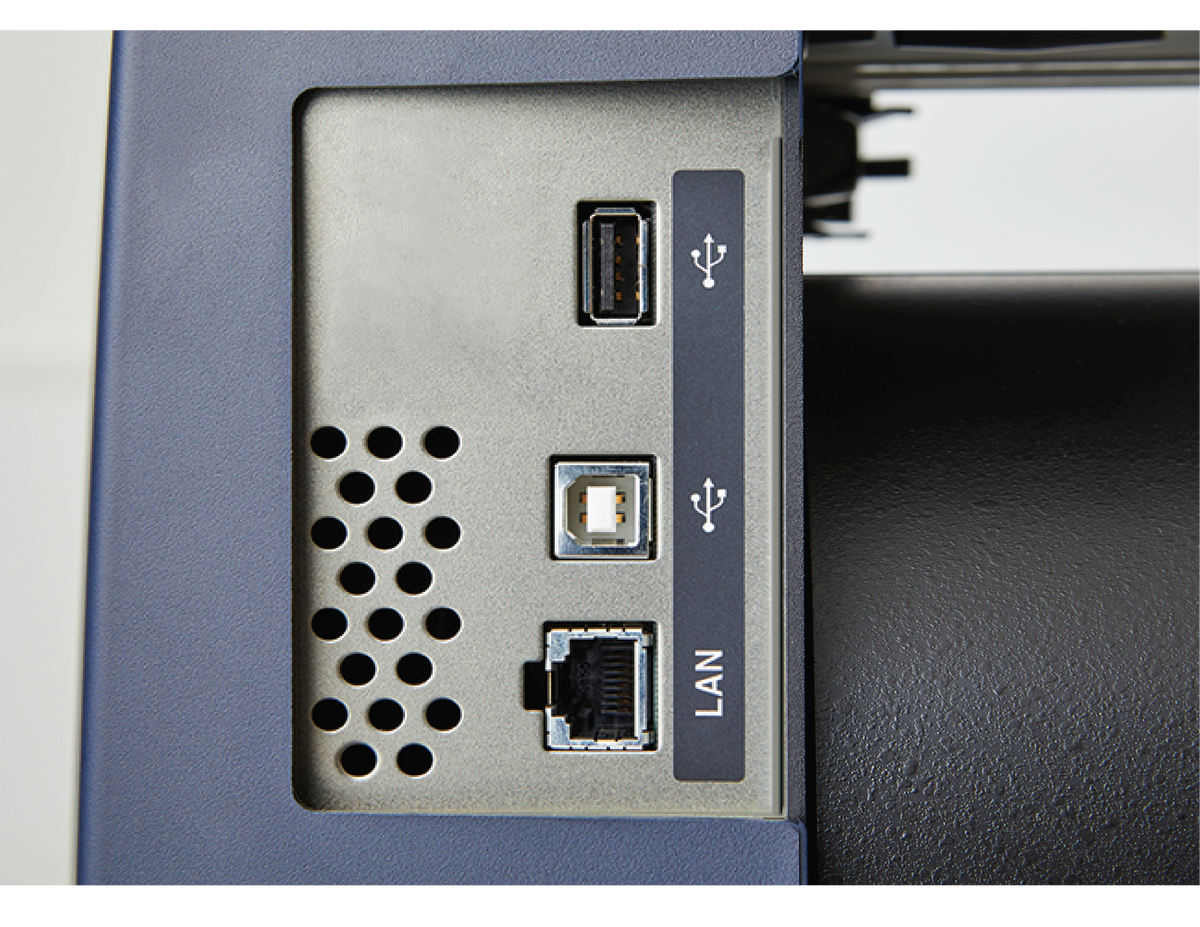

- Interface: USB 2.0 High Speed, Ethernet (10/100)
- Registration: ARMS 8.0 with barcode / Data Link
- Compatible media: window tint film, paint protection film, self-adhesive vinyl, reflective and high-intensity reflective film, sandblast resist rubber
- Dimensions: 65" W × 45" D × 48" H
- Weight: 123 lbs
- Warranty: Graphtec 3-year parts and labor with online product registration
Optional
Second pen holder for two-tool operation (cutting blade and plotting pen).
